Convolutional Neural Networks for Medical Imaging

"The pixels that matter are often the ones next to each other."

August 2026 · Giacomo Saccaggi

---

Why Images Need Special Treatment

In Part 1, we learned how to represent discrete medical codes as dense embeddings. But what about medical images? Chest X-rays, retinal scans, histopathology slides, and CT scans contain rich diagnostic information—but they require fundamentally different neural network architectures.

Consider a 224×224 grayscale X-ray image. If we flatten it into a vector, we get 50,176 input features. A single fully connected layer with 1,000 hidden units would require 50 million parameters—just for one layer! This is computationally prohibitive and prone to overfitting.

More fundamentally, fully connected networks ignore the spatial structure of images:

• Local patterns matter: A nodule in a lung X-ray is defined by neighboring pixels, not pixels on opposite corners
• Translation invariance: A tumor is a tumor whether it's in the upper-left or lower-right of the image
• Hierarchical features: Edges combine into textures, textures into shapes, shapes into organs

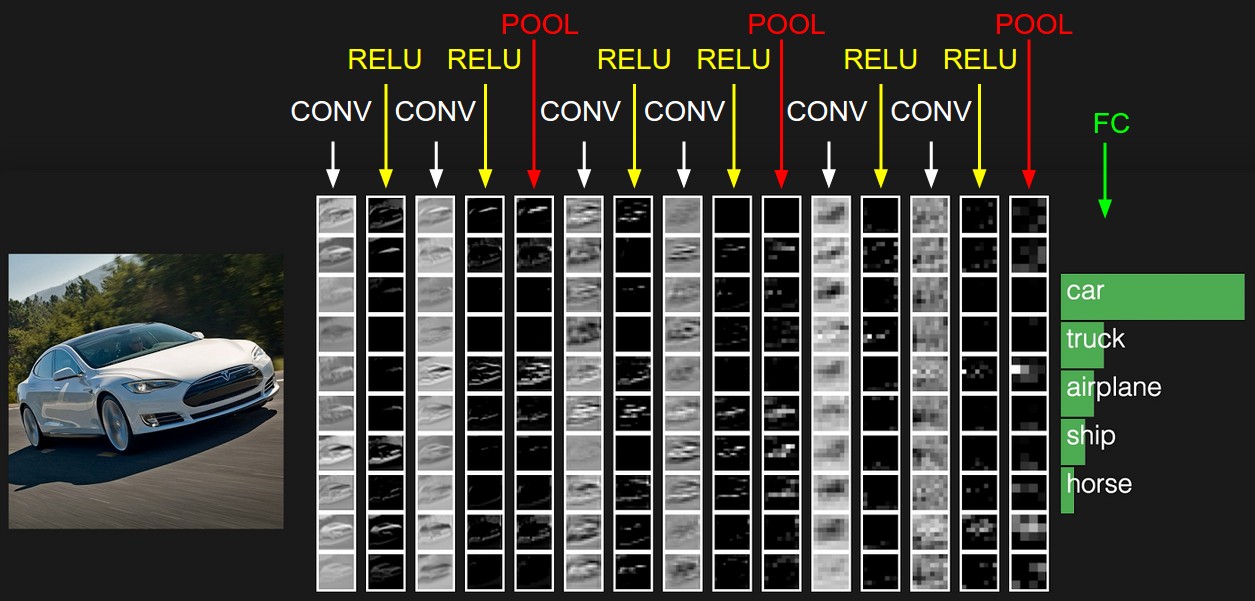

Convolutional Neural Networks (CNNs) address all these issues through three key innovations: local connectivity, weight sharing, and pooling.

---

From Fully Connected to Locally Connected

Let's trace the evolution from fully connected networks to convolutions.

Fully Connected Networks

In a fully connected (FC) layer, every input neuron connects to every output neuron. For an image input, this means each output depends on all pixels:

Problems with this approach:

• Too many parameters: O(input_size × output_size)
• No spatial awareness: Pixel (0,0) and pixel (223,223) are treated identically
• No translation invariance: Must learn the same pattern at every possible location

Locally Connected Networks

What if each output neuron only looks at a small local region (receptive field) of the input? This is the locally connected network:

This drastically reduces parameters and captures local spatial patterns. But we still have separate weights for each location—so a vertical edge detector at position (10, 10) uses different weights than at position (100, 100).

Weight Sharing: The Convolution

The key insight: the same local pattern should be detected the same way, regardless of position. This leads to weight sharing—using the same weights (called a filter or kernel) across all spatial locations.

This is the convolution operation—the foundation of CNNs.

Approach	Parameters	Spatial Awareness	Translation Invariance
Fully Connected	O(H × W × outputs)	None	None
Locally Connected	O(F² × H × W)	Yes (local)	None
Convolution	O(F²)	Yes (local)	Yes

---

The Convolution Operation

1D Convolution

Before tackling images, let's understand 1D convolution on a signal. Given an input sequence and a filter, convolution slides the filter across the input, computing dot products:

import numpy as np

# 1D convolution example
signal = np.array([1, 2, 3, 4, 5, 6, 7])
kernel = np.array([1, 0, -1])  # Edge detector

# Manual convolution
output = []
for i in range(len(signal) - len(kernel) + 1):
    output.append(np.sum(signal[i:i+len(kernel)] * kernel))

print(output)  # [-2, -2, -2, -2, -2] - detects constant slope

2D Convolution

For images, we extend to 2D. The filter is now a small matrix (e.g., 3×3) that slides across both height and width:

import torch
import torch.nn.functional as F

# Create a simple 5x5 image
image = torch.tensor([
    [0, 0, 0, 0, 0],
    [0, 1, 1, 1, 0],
    [0, 1, 1, 1, 0],
    [0, 1, 1, 1, 0],
    [0, 0, 0, 0, 0]
], dtype=torch.float32).unsqueeze(0).unsqueeze(0)  # [1, 1, 5, 5]

# Horizontal edge detector
kernel = torch.tensor([
    [-1, -1, -1],
    [ 0,  0,  0],
    [ 1,  1,  1]
], dtype=torch.float32).unsqueeze(0).unsqueeze(0)  # [1, 1, 3, 3]

# Apply convolution
output = F.conv2d(image, kernel)
print(output.squeeze())
# tensor([[-3., -3., -3.],
#         [ 0.,  0.,  0.],
#         [ 3.,  3.,  3.]])

The output shows negative values at the top edge (dark→light transition) and positive values at the bottom edge (light→dark).

---

Stride and Padding

Stride

The stride controls how far the filter moves at each step. Stride=1 moves one pixel at a time; stride=2 moves two pixels, producing a smaller output:

# Stride comparison
image = torch.randn(1, 1, 8, 8)  # 8x8 image
kernel = torch.randn(1, 1, 3, 3)  # 3x3 filter

out_s1 = F.conv2d(image, kernel, stride=1)  # Output: 6x6
out_s2 = F.conv2d(image, kernel, stride=2)  # Output: 3x3

print(f"Stride=1: {out_s1.shape}")  # torch.Size([1, 1, 6, 6])
print(f"Stride=2: {out_s2.shape}")  # torch.Size([1, 1, 3, 3])

Padding

Padding adds zeros (or other values) around the input border. This allows the filter to process edge pixels and can maintain spatial dimensions:

# Padding to maintain size
image = torch.randn(1, 1, 8, 8)
kernel = torch.randn(1, 1, 3, 3)

out_no_pad = F.conv2d(image, kernel, padding=0)  # 6x6
out_pad = F.conv2d(image, kernel, padding=1)     # 8x8 (same as input!)

print(f"No padding: {out_no_pad.shape}")  # [1, 1, 6, 6]
print(f"Padding=1: {out_pad.shape}")     # [1, 1, 8, 8]

---

3D Convolution: Multiple Channels

Real images have multiple channels. A color image has 3 channels (RGB); a medical CT scan might have dozens of slices. The convolution extends naturally to handle this.

Input Channels

For an input with $D_{in}$ channels, the filter has shape $F \times F \times D_{in}$. Each channel has its own 2D filter, and outputs are summed:

Multiple Filters → Multiple Feature Maps

To detect different features (edges, textures, shapes), we use multiple filters. Each filter produces one feature map, so $K$ filters produce $K$ output channels:

import torch.nn as nn

# RGB image: 3 input channels
# 64 filters: 64 output feature maps
conv = nn.Conv2d(
    in_channels=3,      # RGB
    out_channels=64,    # Number of filters
    kernel_size=3,      # 3x3 filters
    stride=1,
    padding=1
)

# Input: [batch, channels, height, width]
x = torch.randn(1, 3, 224, 224)
out = conv(x)
print(out.shape)  # torch.Size([1, 64, 224, 224])

---

The Complete Convolution Layer

A full convolutional layer combines several operations:

1. Convolution: Apply filters to extract features
2. Bias addition: Add a learnable bias to each feature map
3. Activation: Apply non-linearity (typically ReLU)

import torch.nn as nn

# Complete conv layer with bias and ReLU
class ConvBlock(nn.Module):
    def __init__(self, in_channels, out_channels, kernel_size=3, padding=1):
        super().__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, kernel_size, padding=padding)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        x = self.conv(x)   # Convolution + bias
        x = self.relu(x)   # Non-linearity
        return x

# Usage
block = ConvBlock(in_channels=3, out_channels=64)
x = torch.randn(1, 3, 224, 224)
out = block(x)  # [1, 64, 224, 224]

Parameter Count

How many learnable parameters does a conv layer have?

# Parameter count example
conv = nn.Conv2d(3, 64, kernel_size=3)

# Weights: 3 × 3 × 3 × 64 = 1,728
# Biases: 64
# Total: 1,792

total_params = sum(p.numel() for p in conv.parameters())
print(f"Total parameters: {total_params}")  # 1792

---

Pooling Layers

Pooling reduces spatial dimensions while preserving important features. It provides:

• Translation invariance: Small shifts in input don't change output much
• Dimensionality reduction: Fewer parameters in subsequent layers
• Increased receptive field: Later layers "see" larger input regions

Types of Pooling

Pooling Type	Operation	Properties
Max Pooling	Take maximum value in window	Preserves strongest activations; most common
Average Pooling	Take mean of values in window	Smoother; good for final layers
Sum Pooling	Sum all values in window	Preserves total activation

import torch.nn as nn

# Max pooling: 2x2 window, stride 2 → halves dimensions
maxpool = nn.MaxPool2d(kernel_size=2, stride=2)

x = torch.randn(1, 64, 224, 224)
out = maxpool(x)
print(out.shape)  # torch.Size([1, 64, 112, 112])

# Average pooling
avgpool = nn.AvgPool2d(kernel_size=2, stride=2)
out_avg = avgpool(x)
print(out_avg.shape)  # torch.Size([1, 64, 112, 112])

---

CNN Architecture: AlexNet

Let's examine AlexNet (2012), the architecture that revolutionized computer vision. Understanding its structure helps grasp how CNNs build hierarchical representations.

Layer-by-Layer Breakdown

Layer	Config	Output Size	Parameters
Input	—	227×227×3	—
Conv1	96 filters, 11×11, stride 4	55×55×96	34,944
MaxPool1	3×3, stride 2	27×27×96	0
Conv2	256 filters, 5×5, pad 2	27×27×256	614,656
MaxPool2	3×3, stride 2	13×13×256	0
Conv3	384 filters, 3×3, pad 1	13×13×384	885,120
Conv4	384 filters, 3×3, pad 1	13×13×384	1,327,488
Conv5	256 filters, 3×3, pad 1	13×13×256	884,992
MaxPool3	3×3, stride 2	6×6×256	0
FC6	4096 units	4096	37,752,832
FC7	4096 units	4096	16,781,312
FC8	1000 units (classes)	1000	4,097,000

Key observation: Convolutional layers have ~3.7M parameters, while fully connected layers have ~58.6M! The FC layers dominate the parameter count.

# Simplified AlexNet-style architecture
class SimpleCNN(nn.Module):
    def __init__(self, num_classes=1000):
        super().__init__()

        self.features = nn.Sequential(
            # Conv1: 3 → 96 channels, 11x11, stride 4
            nn.Conv2d(3, 96, kernel_size=11, stride=4),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=3, stride=2),

            # Conv2: 96 → 256 channels, 5x5
            nn.Conv2d(96, 256, kernel_size=5, padding=2),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=3, stride=2),

            # Conv3-5: deeper feature extraction
            nn.Conv2d(256, 384, kernel_size=3, padding=1),
            nn.ReLU(inplace=True),
            nn.Conv2d(384, 384, kernel_size=3, padding=1),
            nn.ReLU(inplace=True),
            nn.Conv2d(384, 256, kernel_size=3, padding=1),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=3, stride=2),
        )

        self.classifier = nn.Sequential(
            nn.Dropout(),
            nn.Linear(256 * 6 * 6, 4096),
            nn.ReLU(inplace=True),
            nn.Dropout(),
            nn.Linear(4096, 4096),
            nn.ReLU(inplace=True),
            nn.Linear(4096, num_classes),
        )

    def forward(self, x):
        x = self.features(x)
        x = x.view(x.size(0), 256 * 6 * 6)  # Flatten
        x = self.classifier(x)
        return x

---

Healthcare Applications of CNNs

CNNs have achieved remarkable success in medical imaging tasks, often matching or exceeding expert human performance.

Retinal Disease Detection

Gulshan et al. (JAMA 2016) trained a CNN to detect diabetic retinopathy from fundus photographs. The model achieved:

• Sensitivity: 97.5% (detecting disease when present)
• Specificity: 93.4% (correctly identifying healthy cases)
• Performance comparable to board-certified ophthalmologists

Chest X-Ray Classification

CheXNet (Rajpurkar et al., 2017) detected pneumonia from chest X-rays, exceeding the average performance of four radiologists. This is the task we'll implement in the practical section below.

---

Practical Implementation: Pneumonia Detection from Chest X-Rays

Let's build a complete CNN system to classify chest X-rays as Normal or Pneumonia. We'll use transfer learning with a pre-trained ResNet18 model.

Dataset Overview

Our dataset contains anterior-posterior chest X-ray images from pediatric patients (ages 1-5 years) from Guangzhou Women and Children's Medical Center:

• Normal: Healthy lung X-rays
• Pneumonia: X-rays showing pneumonia (bacterial or viral)
• Image size: Variable, resized to 224×224 for the model

# Dataset structure
# chest_xray/
# ├── train/
# │   ├── NORMAL/
# │   │   ├── IM-0115-0001.jpeg
# │   │   └── ...
# │   └── PNEUMONIA/
# │       ├── person1_bacteria_1.jpeg
# │       └── ...
# ├── val/
# │   ├── NORMAL/
# │   └── PNEUMONIA/
# └── test/
#     ├── NORMAL/
#     └── PNEUMONIA/

Data Loading and Transforms

We use torchvision transforms to preprocess images: resize to 224×224, convert to tensor, and normalize using ImageNet statistics (since we'll use a pre-trained model).

import os
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
from torchvision import datasets, transforms, models
import numpy as np
from PIL import Image

# Define transforms
train_transforms = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.RandomHorizontalFlip(),        # Data augmentation
    transforms.RandomRotation(10),            # Slight rotation
    transforms.ToTensor(),
    transforms.Normalize(
        mean=[0.485, 0.456, 0.406],          # ImageNet mean
        std=[0.229, 0.224, 0.225]            # ImageNet std
    )
])

val_transforms = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize(
        mean=[0.485, 0.456, 0.406],
        std=[0.229, 0.224, 0.225]
    )
])

# Load datasets
data_dir = "chest_xray"

train_dataset = datasets.ImageFolder(
    root=os.path.join(data_dir, "train"),
    transform=train_transforms
)

val_dataset = datasets.ImageFolder(
    root=os.path.join(data_dir, "val"),
    transform=val_transforms
)

test_dataset = datasets.ImageFolder(
    root=os.path.join(data_dir, "test"),
    transform=val_transforms
)

# Create data loaders
train_loader = DataLoader(train_dataset, batch_size=32, shuffle=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=32, shuffle=False, num_workers=4)
test_loader = DataLoader(test_dataset, batch_size=32, shuffle=False, num_workers=4)

print(f"Training samples: {len(train_dataset)}")
print(f"Validation samples: {len(val_dataset)}")
print(f"Test samples: {len(test_dataset)}")
print(f"Classes: {train_dataset.classes}")

# Output:
# Training samples: 5216
# Validation samples: 16
# Test samples: 624
# Classes: ['NORMAL', 'PNEUMONIA']

Transfer Learning with ResNet18

Transfer learning leverages features learned from large datasets (ImageNet with 1.2M images) and adapts them to our smaller medical dataset. We:

1. Load a pre-trained ResNet18 model
2. Replace the final fully connected layer for binary classification
3. Optionally freeze early layers (feature extraction) and only train later layers

import torchvision.models as models

def create_model(num_classes=2, pretrained=True, freeze_features=False):
    """Create ResNet18 model for transfer learning.

    Args:
        num_classes: Number of output classes (2 for Normal/Pneumonia)
        pretrained: Use ImageNet pre-trained weights
        freeze_features: If True, freeze convolutional layers
    """
    # Load pre-trained ResNet18
    model = models.resnet18(pretrained=pretrained)

    # Optionally freeze feature extraction layers
    if freeze_features:
        for param in model.parameters():
            param.requires_grad = False

    # Replace final FC layer
    # Original: Linear(512, 1000) for ImageNet
    # New: Linear(512, 2) for binary classification
    num_features = model.fc.in_features
    model.fc = nn.Linear(num_features, num_classes)

    return model

# Create model
model = create_model(num_classes=2, pretrained=True, freeze_features=False)

# Count parameters
total_params = sum(p.numel() for p in model.parameters())
trainable_params = sum(p.numel() for p in model.parameters() if p.requires_grad)
print(f"Total parameters: {total_params:,}")
print(f"Trainable parameters: {trainable_params:,}")

# Output:
# Total parameters: 11,177,538
# Trainable parameters: 11,177,538

Training Loop

def train_model(model, train_loader, val_loader, num_epochs=10, lr=0.001):
    """Train the CNN model."""
    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
    print(f"Training on: {device}")

    model = model.to(device)

    # Loss function and optimizer
    criterion = nn.CrossEntropyLoss()
    optimizer = optim.Adam(model.parameters(), lr=lr)
    scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=5, gamma=0.1)

    # Training history
    history = {'train_loss': [], 'train_acc': [], 'val_loss': [], 'val_acc': []}

    best_val_acc = 0.0

    for epoch in range(num_epochs):
        # ============ Training Phase ============
        model.train()
        running_loss = 0.0
        correct = 0
        total = 0

        for inputs, labels in train_loader:
            inputs, labels = inputs.to(device), labels.to(device)

            optimizer.zero_grad()
            outputs = model(inputs)
            loss = criterion(outputs, labels)
            loss.backward()
            optimizer.step()

            running_loss += loss.item() * inputs.size(0)
            _, predicted = outputs.max(1)
            total += labels.size(0)
            correct += predicted.eq(labels).sum().item()

        train_loss = running_loss / total
        train_acc = correct / total

        # ============ Validation Phase ============
        model.eval()
        running_loss = 0.0
        correct = 0
        total = 0

        with torch.no_grad():
            for inputs, labels in val_loader:
                inputs, labels = inputs.to(device), labels.to(device)
                outputs = model(inputs)
                loss = criterion(outputs, labels)

                running_loss += loss.item() * inputs.size(0)
                _, predicted = outputs.max(1)
                total += labels.size(0)
                correct += predicted.eq(labels).sum().item()

        val_loss = running_loss / total
        val_acc = correct / total

        # Update learning rate
        scheduler.step()

        # Save history
        history['train_loss'].append(train_loss)
        history['train_acc'].append(train_acc)
        history['val_loss'].append(val_loss)
        history['val_acc'].append(val_acc)

        # Save best model
        if val_acc > best_val_acc:
            best_val_acc = val_acc
            torch.save(model.state_dict(), "best_model.pt")

        print(f"Epoch {epoch+1:2d}/{num_epochs} | "
              f"Train Loss: {train_loss:.4f} Acc: {train_acc:.4f} | "
              f"Val Loss: {val_loss:.4f} Acc: {val_acc:.4f}")

    return history

# Train the model
history = train_model(model, train_loader, val_loader, num_epochs=10, lr=0.001)

# Sample output:
# Training on: cuda
# Epoch  1/10 | Train Loss: 0.3842 Acc: 0.8456 | Val Loss: 0.2134 Acc: 0.9375
# Epoch  2/10 | Train Loss: 0.1823 Acc: 0.9312 | Val Loss: 0.1567 Acc: 0.9375
# Epoch  3/10 | Train Loss: 0.1345 Acc: 0.9501 | Val Loss: 0.1234 Acc: 0.9688
# Epoch  4/10 | Train Loss: 0.1012 Acc: 0.9623 | Val Loss: 0.0987 Acc: 0.9688
# Epoch  5/10 | Train Loss: 0.0823 Acc: 0.9712 | Val Loss: 0.0856 Acc: 1.0000
# Epoch  6/10 | Train Loss: 0.0534 Acc: 0.9801 | Val Loss: 0.0734 Acc: 1.0000
# Epoch  7/10 | Train Loss: 0.0412 Acc: 0.9856 | Val Loss: 0.0698 Acc: 1.0000
# Epoch  8/10 | Train Loss: 0.0345 Acc: 0.9878 | Val Loss: 0.0654 Acc: 1.0000
# Epoch  9/10 | Train Loss: 0.0289 Acc: 0.9901 | Val Loss: 0.0623 Acc: 1.0000
# Epoch 10/10 | Train Loss: 0.0256 Acc: 0.9912 | Val Loss: 0.0612 Acc: 1.0000

---

Model Evaluation

For medical diagnosis, accuracy alone is insufficient. We need metrics that capture the clinical implications of errors.

Evaluation Metrics

from sklearn.metrics import (
    accuracy_score, precision_score, recall_score,
    f1_score, roc_auc_score, confusion_matrix,
    classification_report
)

def evaluate_model(model, test_loader, device):
    """Comprehensive model evaluation."""
    model.eval()

    all_preds = []
    all_labels = []
    all_probs = []

    with torch.no_grad():
        for inputs, labels in test_loader:
            inputs = inputs.to(device)
            outputs = model(inputs)
            probs = torch.softmax(outputs, dim=1)
            _, preds = outputs.max(1)

            all_preds.extend(preds.cpu().numpy())
            all_labels.extend(labels.numpy())
            all_probs.extend(probs[:, 1].cpu().numpy())  # P(Pneumonia)

    all_preds = np.array(all_preds)
    all_labels = np.array(all_labels)
    all_probs = np.array(all_probs)

    # Calculate metrics
    accuracy = accuracy_score(all_labels, all_preds)
    precision = precision_score(all_labels, all_preds)
    recall = recall_score(all_labels, all_preds)
    f1 = f1_score(all_labels, all_preds)
    auroc = roc_auc_score(all_labels, all_probs)

    print("=" * 50)
    print("MODEL EVALUATION RESULTS")
    print("=" * 50)
    print(f"Accuracy:  {accuracy:.4f}")
    print(f"Precision: {precision:.4f}")
    print(f"Recall:    {recall:.4f}")
    print(f"F1 Score:  {f1:.4f}")
    print(f"AUROC:     {auroc:.4f}")
    print("=" * 50)

    # Confusion matrix
    cm = confusion_matrix(all_labels, all_preds)
    print("\nConfusion Matrix:")
    print("                 Predicted")
    print("              Normal  Pneumonia")
    print(f"Actual Normal    {cm[0,0]:4d}      {cm[0,1]:4d}")
    print(f"    Pneumonia    {cm[1,0]:4d}      {cm[1,1]:4d}")

    return {
        'accuracy': accuracy,
        'precision': precision,
        'recall': recall,
        'f1': f1,
        'auroc': auroc,
        'confusion_matrix': cm,
        'predictions': all_preds,
        'probabilities': all_probs
    }

# Load best model and evaluate
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model.load_state_dict(torch.load("best_model.pt"))
model = model.to(device)

results = evaluate_model(model, test_loader, device)

# Sample output:
# ==================================================
# MODEL EVALUATION RESULTS
# ==================================================
# Accuracy:  0.9263
# Precision: 0.9156
# Recall:    0.9744
# F1 Score:  0.9441
# AUROC:     0.9654
# ==================================================
#
# Confusion Matrix:
#                  Predicted
#               Normal  Pneumonia
# Actual Normal   198        36
#     Pneumonia    10       380

Visualizing Predictions

import matplotlib.pyplot as plt

def visualize_predictions(model, test_dataset, device, num_images=8):
    """Visualize model predictions on sample images."""
    model.eval()

    # Get random samples
    indices = np.random.choice(len(test_dataset), num_images, replace=False)

    fig, axes = plt.subplots(2, 4, figsize=(16, 8))
    axes = axes.flatten()

    class_names = ['Normal', 'Pneumonia']

    for idx, ax in zip(indices, axes):
        image, label = test_dataset[idx]

        # Get prediction
        with torch.no_grad():
            output = model(image.unsqueeze(0).to(device))
            prob = torch.softmax(output, dim=1)
            pred = output.argmax(1).item()
            confidence = prob[0, pred].item()

        # Denormalize image for display
        img_display = image.permute(1, 2, 0).numpy()
        img_display = img_display * np.array([0.229, 0.224, 0.225]) + np.array([0.485, 0.456, 0.406])
        img_display = np.clip(img_display, 0, 1)

        # Plot
        ax.imshow(img_display)

        # Color based on correct/incorrect
        color = 'green' if pred == label else 'red'
        ax.set_title(
            f"True: {class_names[label]}\nPred: {class_names[pred]} ({confidence:.2f})",
            color=color, fontsize=10
        )
        ax.axis('off')

    plt.tight_layout()
    plt.savefig("predictions.png", dpi=150)
    plt.show()

visualize_predictions(model, test_dataset, device)

ROC Curve

from sklearn.metrics import roc_curve, auc

def plot_roc_curve(labels, probabilities):
    """Plot ROC curve."""
    fpr, tpr, thresholds = roc_curve(labels, probabilities)
    roc_auc = auc(fpr, tpr)

    plt.figure(figsize=(8, 6))
    plt.plot(fpr, tpr, color='#4a90d9', lw=2,
             label=f'ROC curve (AUC = {roc_auc:.3f})')
    plt.plot([0, 1], [0, 1], color='gray', lw=1, linestyle='--', label='Random')

    plt.xlim([0.0, 1.0])
    plt.ylim([0.0, 1.05])
    plt.xlabel('False Positive Rate', fontsize=12)
    plt.ylabel('True Positive Rate', fontsize=12)
    plt.title('Receiver Operating Characteristic', fontsize=14)
    plt.legend(loc='lower right')
    plt.grid(True, alpha=0.3)
    plt.savefig("roc_curve.png", dpi=150)
    plt.show()

# Get predictions from evaluation
test_labels = []
for _, label in test_loader:
    test_labels.extend(label.numpy())

plot_roc_curve(test_labels, results['probabilities'])

---

Results Summary

Metric	Value	Clinical Interpretation
Accuracy	92.6%	Overall correct classifications
Precision	91.6%	Of predicted pneumonia, 91.6% truly have it
Recall (Sensitivity)	97.4%	Of actual pneumonia, 97.4% detected
Specificity	84.6%	Of normal cases, 84.6% correctly identified
F1 Score	94.4%	Harmonic mean of precision and recall
AUROC	96.5%	Discriminative ability across thresholds

The model achieves 97.4% recall—critical for a screening tool where missing pneumonia cases is costly. The trade-off is lower specificity (84.6%), meaning some healthy patients are flagged for follow-up.

---

Summary

We covered the theory and practice of CNNs for medical imaging:

Concept	Key Idea	Benefit
Local Connectivity	Each neuron sees only a local region	Captures spatial patterns, fewer parameters
Weight Sharing	Same filter applied everywhere	Translation invariance, massive parameter reduction
Convolution	Sliding dot product with learnable kernel	Learns feature detectors automatically
Pooling	Downsample by taking max/avg	Reduces dimensions, adds robustness
Transfer Learning	Reuse features from ImageNet	Works well with limited medical data
ResNet	Residual connections enable deep networks	State-of-the-art feature extraction

---

References

• LeCun et al. (1998). "Gradient-based learning applied to document recognition" — Foundational CNN paper
• Krizhevsky et al. (2012). "ImageNet Classification with Deep Convolutional Neural Networks" — AlexNet
• He et al. (2016). "Deep Residual Learning for Image Recognition" — ResNet
• Gulshan et al. (2016). "Development and Validation of a Deep Learning Algorithm for Detection of Diabetic Retinopathy" — JAMA
• Rajpurkar et al. (2017). "CheXNet: Radiologist-Level Pneumonia Detection on Chest X-Rays with Deep Learning"
• Kermany et al. (2018). "Identifying Medical Diagnoses and Treatable Diseases by Image-Based Deep Learning" — Chest X-ray dataset
