Attention Mechanisms and the RETAIN Model

"In healthcare, it's not enough to predict — we must explain why."

August 2026 · Giacomo Saccaggi

---

The Limitation of Encoder-Decoder Models

In previous articles, we explored how RNNs can model sequential patient data — processing visits one by one and building up a hidden state that captures the patient's medical history. But there's a fundamental problem with the standard encoder-decoder architecture.

Consider a patient with 50 hospital visits over 10 years. A vanilla RNN encoder compresses this entire history into a single fixed-length context vector. This vector must somehow capture every relevant detail: the diabetes diagnosed in visit 3, the cardiac event in visit 27, the medication change in visit 45.

The problem is information bottleneck. No matter how complex the patient history, we force it through a fixed-dimensional vector (typically 128-512 dimensions). For long sequences:

• Early information fades — despite LSTM/GRU gates, information from early visits gets diluted
• No selective focus — the decoder can't "look back" at specific visits that matter for the current prediction
• Capacity saturation — adding more visits doesn't proportionally increase information in the context

---

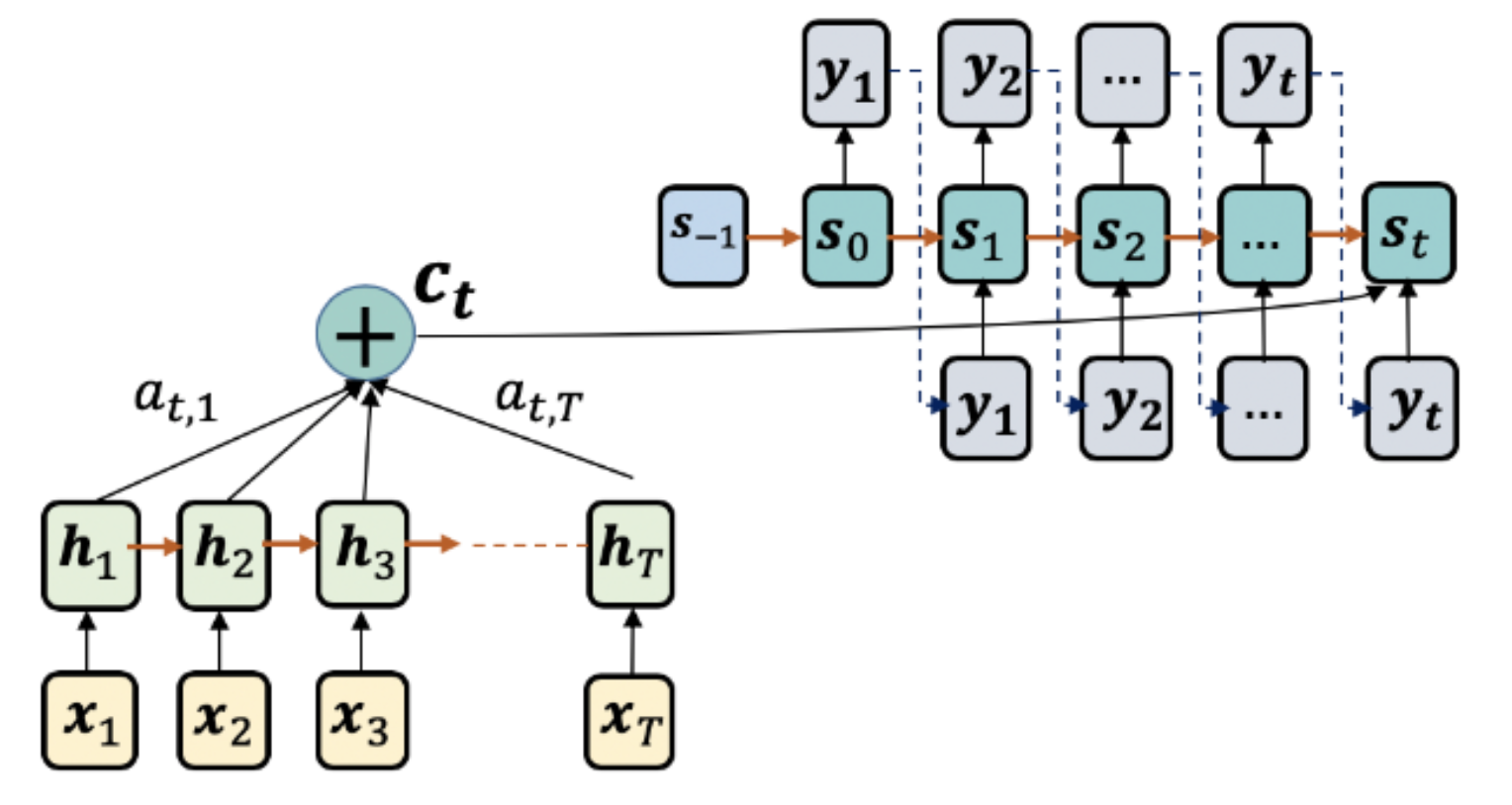

Attention: Dynamic Context Vectors

The breakthrough insight: instead of forcing all information through one bottleneck, let the decoder selectively attend to different parts of the input for each output step.

Rather than a single static context vector c, we compute a different context vector c_i for each output position i. This context is a weighted combination of all encoder hidden states, where the weights indicate which inputs are most relevant for the current prediction.

The Attention Architecture

Given an encoder that produces hidden states h₁, h₂, ..., h_T (one for each input position), and a decoder with state s_i at output position i:

The attention weights α_ij form a probability distribution over input positions. High weights mean "pay attention here" — the model has learned that this input is important for the current output.

---

Alignment Models: Computing Attention Scores

The key design choice in attention is the score function — how do we measure compatibility between decoder state s_i and encoder state h_j? Three main approaches dominate:

1. Dot-Product Attention

The simplest approach: just take the dot product of the two vectors.

def dot_product_attention(decoder_state, encoder_states):
    """
    Args:
        decoder_state: [batch, hidden_dim]
        encoder_states: [batch, seq_len, hidden_dim]
    Returns:
        scores: [batch, seq_len]
    """
    # [batch, hidden_dim] @ [batch, hidden_dim, seq_len] -> [batch, seq_len]
    scores = torch.bmm(
        decoder_state.unsqueeze(1),  # [batch, 1, hidden]
        encoder_states.transpose(1, 2)  # [batch, hidden, seq_len]
    ).squeeze(1)  # [batch, seq_len]
    return scores

2. General (Bilinear) Attention

Introduce a learnable weight matrix to allow different dimensions and learn a compatibility function:

class GeneralAttention(nn.Module):
    def __init__(self, decoder_dim, encoder_dim):
        super().__init__()
        self.W_a = nn.Linear(encoder_dim, decoder_dim, bias=False)

    def forward(self, decoder_state, encoder_states):
        """
        Args:
            decoder_state: [batch, decoder_dim]
            encoder_states: [batch, seq_len, encoder_dim]
        Returns:
            scores: [batch, seq_len]
        """
        # Project encoder states: [batch, seq_len, decoder_dim]
        projected = self.W_a(encoder_states)

        # Dot product with decoder state
        scores = torch.bmm(
            projected,
            decoder_state.unsqueeze(2)  # [batch, decoder_dim, 1]
        ).squeeze(2)  # [batch, seq_len]
        return scores

3. Additive (Bahdanau) Attention

Concatenate the vectors and pass through a feedforward network:

class AdditiveAttention(nn.Module):
    def __init__(self, decoder_dim, encoder_dim, attention_dim):
        super().__init__()
        self.W_decoder = nn.Linear(decoder_dim, attention_dim, bias=False)
        self.W_encoder = nn.Linear(encoder_dim, attention_dim, bias=False)
        self.v = nn.Linear(attention_dim, 1, bias=False)

    def forward(self, decoder_state, encoder_states):
        """
        Args:
            decoder_state: [batch, decoder_dim]
            encoder_states: [batch, seq_len, encoder_dim]
        Returns:
            scores: [batch, seq_len]
        """
        # Project decoder: [batch, 1, attention_dim]
        dec_proj = self.W_decoder(decoder_state).unsqueeze(1)

        # Project encoder: [batch, seq_len, attention_dim]
        enc_proj = self.W_encoder(encoder_states)

        # Combine and compute scores
        combined = torch.tanh(dec_proj + enc_proj)  # Broadcasting
        scores = self.v(combined).squeeze(2)  # [batch, seq_len]
        return scores

Method	Score Function	Parameters	When to Use
Dot-Product	sTh	0	Same dimensions, speed critical
General	sTWh	d₁ × d₂	Different dimensions, moderate complexity
Additive	vTtanh(W[s;h])	(d₁+d₂)×d_a + d_a	Maximum expressiveness needed

---

The Interpretability Problem in Healthcare

Deep learning models achieve impressive predictive performance, but in healthcare, accuracy alone is insufficient. When a model predicts that a patient has 85% risk of heart failure, clinicians need to know why. What factors drove that prediction? Which visits were most concerning? Which diagnoses contributed most?

This isn't just about trust — it's about actionability. A doctor can't intervene on a black-box prediction. But if the model says "high risk because of the combination of cardiac dysrhythmia in visit 12 and coronary atherosclerosis in visit 18," that's actionable clinical information.

Categories of Interpretability

Interpretable models in healthcare generally fall into three categories:

Category	Approach	Example	Limitation
Rule-based	Extract decision rules	"IF diabetes AND hypertension THEN high risk"	Rules can be too simple for complex patterns
Case-based	Find similar patients	"This patient is similar to these 5 who had heart failure"	Doesn't explain what made them similar
Risk-factor-based	Identify contributing factors	"Diagnosis X contributed +0.3, medication Y contributed -0.1"	Requires model architecture that supports attribution

For temporal healthcare data (sequences of visits), we need models that can identify:

• Which visits were most important for the prediction
• Which variables within those visits (diagnoses, medications, labs) drove the contribution

This is exactly what attention mechanisms can provide — and the RETAIN model was specifically designed to exploit this for healthcare interpretability.

---

RETAIN: REverse Time AttentioN Model

RETAIN (Choi et al., NIPS 2016) is a neural network architecture designed specifically for interpretable healthcare prediction. Its key innovation: two-level attention that provides both visit-level and variable-level interpretability.

The Core Insight

Standard attention tells us which visits are important. But a visit might contain 10 diagnosis codes, 5 medications, and 3 lab results. Which of these actually matters?

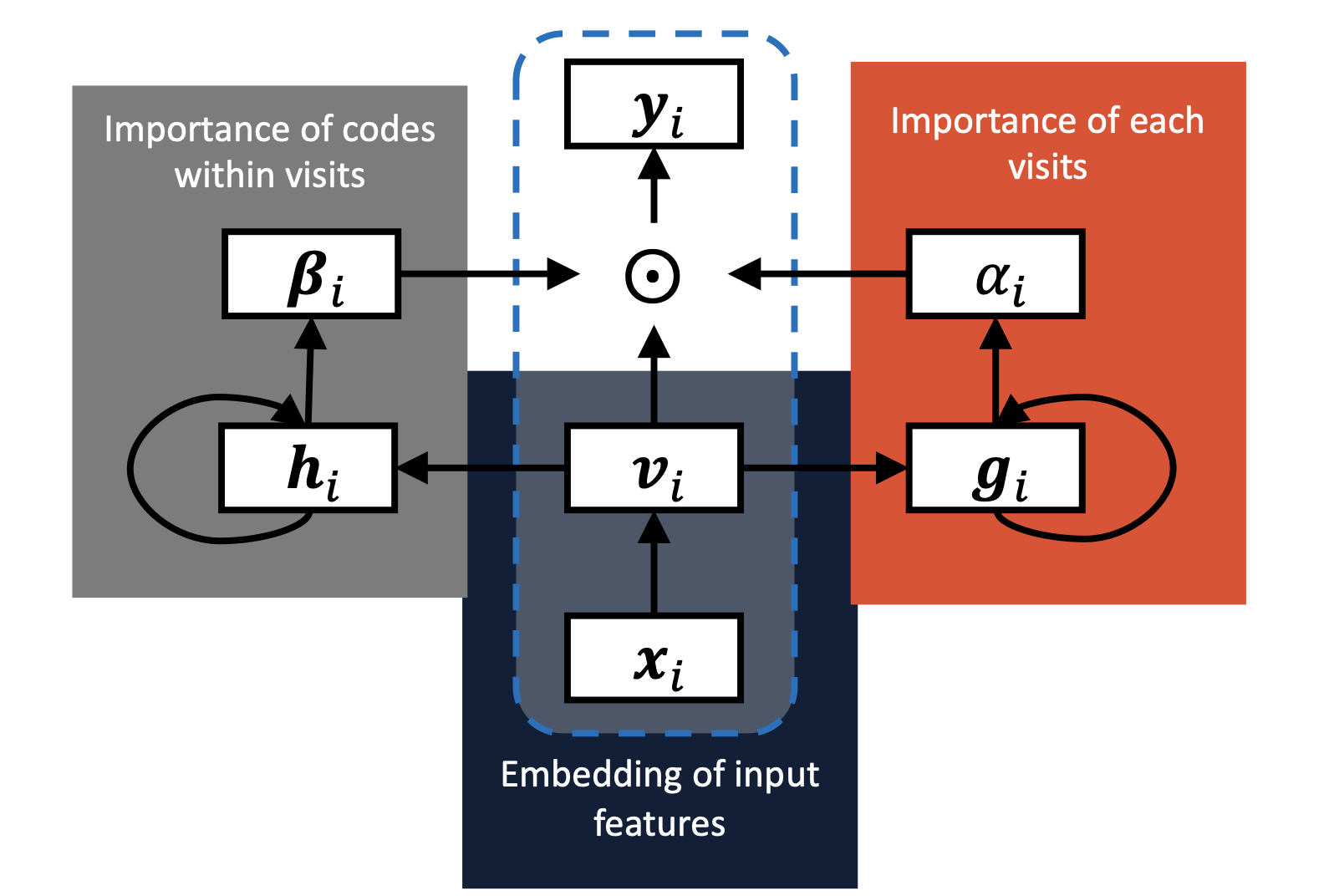

RETAIN introduces two attention mechanisms:

• α (alpha): Visit-level attention — which visits should we focus on?
• β (beta): Variable-level attention — within each visit, which variables matter?

The combination allows us to say: "The prediction is driven by cardiac dysrhythmia (variable) in visit 12 (visit)."

Why Reverse Time?

RETAIN processes visits in reverse chronological order (most recent first). Why?

---

RETAIN Architecture: Step by Step

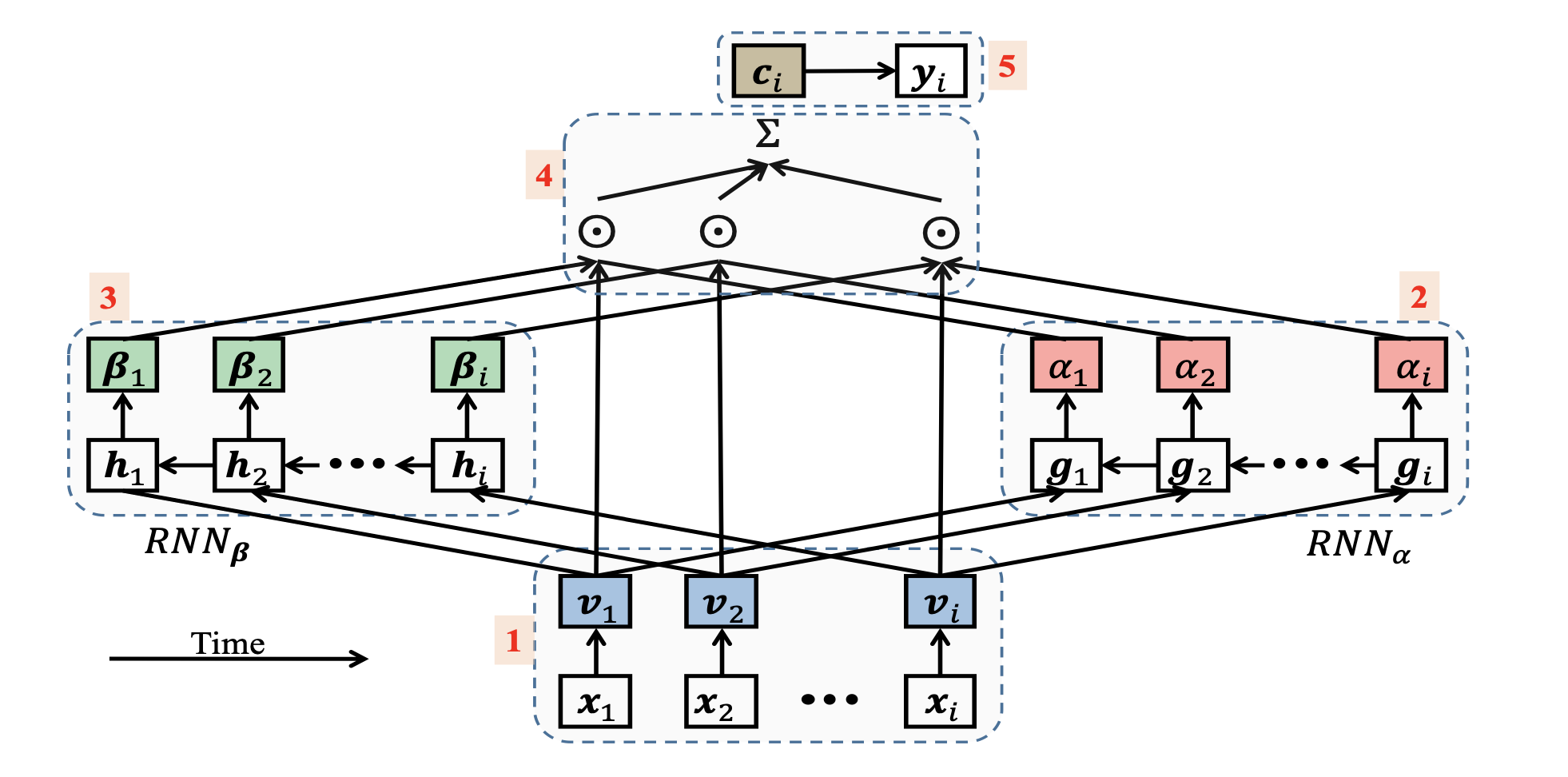

Let's walk through the RETAIN architecture in detail. Given a patient with T visits, where each visit contains a set of medical codes:

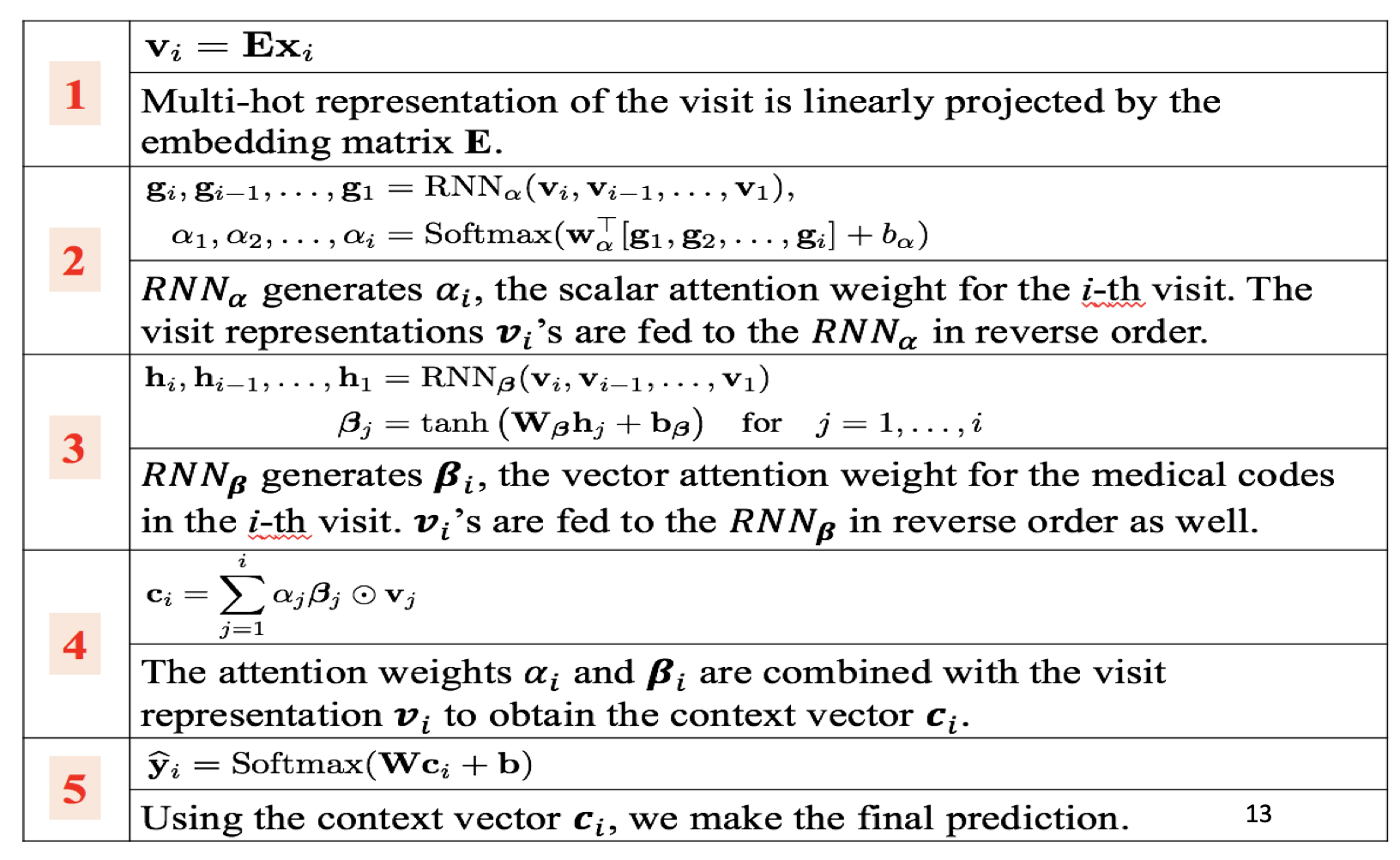

Step 1: Embed Visit Codes

Each visit x_i is represented as a multi-hot vector over all possible medical codes. We embed this into a dense representation:

Step 2: RNN_α — Visit Importance

Process visits in reverse order through the first RNN to generate visit-level representations:

Step 3: Compute α — Visit Attention Weights

Transform each g_i into a scalar attention score, then normalize:

Step 4: RNN_β — Variable Context

A second RNN (also in reverse time) generates context for variable-level attention:

Step 5: Compute β — Variable Attention Weights

Unlike α (scalar per visit), β is a vector with one weight per embedding dimension:

Note: β uses tanh (not softmax) because:

• We want values that can be positive (contributing toward prediction) or negative (contributing against)
• Variables are not mutually exclusive — multiple can be important simultaneously

Step 6: Compute Context Vector

Combine visit attention (α), variable attention (β), and visit embeddings (v):

Step 7: Final Prediction

Pass the context through a final layer for prediction:

---

Interpreting RETAIN: Contribution Analysis

The beauty of RETAIN is that we can decompose predictions into interpretable contributions. For each visit i and each medical code j within that visit:

Clinical Interpretation Example

Consider a heart failure prediction with the following contribution analysis:

Visit	α (Visit Importance)	Diagnosis	Contribution
Visit 12	0.35	Cardiac Dysrhythmia (CD)	+0.42
Visit 18	0.28	Coronary Atherosclerosis (CA)	+0.31
Visit 15	0.18	Heart Valve Disorder (HVD)	+0.15
Visit 8	0.12	Skin Disorder (SD)	-0.08
Visit 3	0.07	Essential Hypertension	+0.05

This tells the clinician:

• Visit 12 is the most important (α=0.35), primarily due to cardiac dysrhythmia
• Cardiac conditions (CD, CA, HVD) are positive contributors — as expected for heart failure
• Skin disorder is a negative contributor — makes sense, it's unrelated to cardiac health
• The model has learned clinically meaningful patterns!

---

RETAIN Implementation in PyTorch

Let's implement the complete RETAIN model. We'll use GRUs as the RNN cells, which work well in practice and are computationally efficient.

The RETAIN Module

import torch
import torch.nn as nn
import torch.nn.functional as F

class RETAIN(nn.Module):
    """
    RETAIN: REverse Time AttentioN model for interpretable healthcare prediction.

    Two-level attention:
    - Alpha (α): visit-level attention weights
    - Beta (β): variable-level attention weights
    """

    def __init__(self, num_codes, embed_dim=128, hidden_dim=128,
                 num_classes=2, dropout=0.3):
        """
        Args:
            num_codes: Size of medical code vocabulary
            embed_dim: Dimension of code embeddings
            hidden_dim: Hidden dimension for GRU cells
            num_classes: Number of output classes
            dropout: Dropout probability
        """
        super().__init__()

        self.num_codes = num_codes
        self.embed_dim = embed_dim
        self.hidden_dim = hidden_dim

        # Embedding layer for medical codes
        self.embedding = nn.Linear(num_codes, embed_dim, bias=False)

        # RNN for visit-level attention (alpha)
        self.gru_alpha = nn.GRU(
            input_size=embed_dim,
            hidden_size=hidden_dim,
            batch_first=True,
            bidirectional=False
        )

        # RNN for variable-level attention (beta)
        self.gru_beta = nn.GRU(
            input_size=embed_dim,
            hidden_size=hidden_dim,
            batch_first=True,
            bidirectional=False
        )

        # Attention layers
        self.alpha_fc = nn.Linear(hidden_dim, 1)  # Visit attention: hidden -> scalar
        self.beta_fc = nn.Linear(hidden_dim, embed_dim)  # Variable attention: hidden -> embed_dim

        # Output layer
        self.output_fc = nn.Linear(embed_dim, num_classes)

        # Dropout
        self.dropout = nn.Dropout(dropout)

    def forward(self, x, lengths):
        """
        Args:
            x: Padded visit sequences [batch_size, max_visits, num_codes]
               Each visit is a multi-hot vector of medical codes
            lengths: Actual number of visits per patient [batch_size]

        Returns:
            logits: [batch_size, num_classes]
            alpha: Visit attention weights [batch_size, max_visits]
            beta: Variable attention weights [batch_size, max_visits, embed_dim]
        """
        batch_size, max_visits, _ = x.size()

        # Step 1: Embed visits
        # [batch, max_visits, num_codes] -> [batch, max_visits, embed_dim]
        v = self.embedding(x)
        v = self.dropout(v)

        # Step 2: Reverse the sequence for reverse-time processing
        # RETAIN processes from most recent to oldest
        v_reversed = self._reverse_sequence(v, lengths)

        # Step 3: GRU for alpha (visit-level attention)
        g, _ = self.gru_alpha(v_reversed)  # [batch, max_visits, hidden]
        g = self._reverse_sequence(g, lengths)  # Reverse back to original order

        # Step 4: Compute alpha attention weights
        # [batch, max_visits, hidden] -> [batch, max_visits, 1] -> [batch, max_visits]
        alpha_logits = self.alpha_fc(g).squeeze(-1)

        # Mask padding positions before softmax
        mask = self._create_mask(lengths, max_visits, x.device)
        alpha_logits = alpha_logits.masked_fill(~mask, float('-inf'))
        alpha = F.softmax(alpha_logits, dim=1)  # [batch, max_visits]

        # Step 5: GRU for beta (variable-level attention)
        h, _ = self.gru_beta(v_reversed)  # [batch, max_visits, hidden]
        h = self._reverse_sequence(h, lengths)  # Reverse back

        # Step 6: Compute beta attention weights
        # [batch, max_visits, hidden] -> [batch, max_visits, embed_dim]
        beta = torch.tanh(self.beta_fc(h))

        # Step 7: Compute context vector
        # c = sum_i alpha_i * (beta_i ⊙ v_i)
        # alpha: [batch, max_visits] -> [batch, max_visits, 1]
        # beta * v: [batch, max_visits, embed_dim]
        alpha_expanded = alpha.unsqueeze(-1)  # [batch, max_visits, 1]
        context = (alpha_expanded * beta * v).sum(dim=1)  # [batch, embed_dim]

        # Step 8: Final prediction
        context = self.dropout(context)
        logits = self.output_fc(context)  # [batch, num_classes]

        return logits, alpha, beta

    def _reverse_sequence(self, x, lengths):
        """Reverse sequences for reverse-time processing."""
        batch_size, max_len, dim = x.size()
        reversed_x = torch.zeros_like(x)

        for i in range(batch_size):
            length = lengths[i].item()
            # Reverse only the valid portion
            reversed_x[i, :length] = x[i, :length].flip(dims=[0])

        return reversed_x

    def _create_mask(self, lengths, max_len, device):
        """Create boolean mask for valid positions."""
        batch_size = lengths.size(0)
        mask = torch.arange(max_len, device=device).unsqueeze(0)
        mask = mask < lengths.unsqueeze(1)
        return mask

Custom Dataset for Variable-Length Visits

Patients have different numbers of visits. We need a custom collate function to handle padding:

from torch.utils.data import Dataset, DataLoader
from torch.nn.utils.rnn import pad_sequence

class PatientVisitDataset(Dataset):
    """Dataset for patient visit sequences."""

    def __init__(self, patient_visits, labels, num_codes):
        """
        Args:
            patient_visits: List of lists of lists
                patient_visits[i] = list of visits for patient i
                patient_visits[i][j] = list of code indices for visit j
            labels: Binary labels for each patient
            num_codes: Total number of unique codes
        """
        self.patient_visits = patient_visits
        self.labels = labels
        self.num_codes = num_codes

    def __len__(self):
        return len(self.labels)

    def __getitem__(self, idx):
        visits = self.patient_visits[idx]  # List of visits
        label = self.labels[idx]

        # Convert each visit to multi-hot vector
        visit_tensors = []
        for visit_codes in visits:
            multi_hot = torch.zeros(self.num_codes)
            for code_idx in visit_codes:
                multi_hot[code_idx] = 1.0
            visit_tensors.append(multi_hot)

        # Stack visits: [num_visits, num_codes]
        visits_tensor = torch.stack(visit_tensors)

        return visits_tensor, label


def collate_fn(batch):
    """Custom collate function to handle variable-length visit sequences."""
    visits_list, labels = zip(*batch)

    # Get lengths before padding
    lengths = torch.tensor([v.size(0) for v in visits_list])

    # Pad visit sequences to same length
    # pad_sequence expects list of [seq_len, features] tensors
    padded_visits = pad_sequence(visits_list, batch_first=True, padding_value=0)

    labels = torch.tensor(labels, dtype=torch.long)

    return padded_visits, labels, lengths


# Example usage
patient_visits = [
    [[0, 5, 23], [1, 5], [10, 15, 20]],  # Patient 1: 3 visits
    [[2, 8], [3, 9, 12, 18]],              # Patient 2: 2 visits
    [[4], [6, 7], [11], [14, 19]],         # Patient 3: 4 visits
]
labels = [0, 1, 0]

dataset = PatientVisitDataset(patient_visits, labels, num_codes=100)
dataloader = DataLoader(dataset, batch_size=2, shuffle=True, collate_fn=collate_fn)

Training RETAIN

import torch.optim as optim
from sklearn.metrics import roc_auc_score, precision_recall_fscore_support

def train_retain(model, train_loader, val_loader, num_epochs=30, lr=0.001):
    """Train RETAIN model with early stopping."""
    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
    model = model.to(device)

    criterion = nn.CrossEntropyLoss()
    optimizer = optim.Adam(model.parameters(), lr=lr)

    best_auroc = 0
    patience = 5
    patience_counter = 0

    for epoch in range(num_epochs):
        # Training phase
        model.train()
        total_loss = 0

        for visits, labels, lengths in train_loader:
            visits = visits.to(device)
            labels = labels.to(device)
            lengths = lengths.to(device)

            optimizer.zero_grad()

            # Forward pass (ignore attention for training)
            logits, _, _ = model(visits, lengths)
            loss = criterion(logits, labels)

            loss.backward()
            # Gradient clipping for stability
            torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=5.0)
            optimizer.step()

            total_loss += loss.item()

        # Validation phase
        model.eval()
        all_probs = []
        all_labels = []

        with torch.no_grad():
            for visits, labels, lengths in val_loader:
                visits = visits.to(device)
                lengths = lengths.to(device)

                logits, _, _ = model(visits, lengths)
                probs = F.softmax(logits, dim=1)[:, 1]

                all_probs.extend(probs.cpu().numpy())
                all_labels.extend(labels.numpy())

        val_auroc = roc_auc_score(all_labels, all_probs)
        avg_loss = total_loss / len(train_loader)

        print(f"Epoch {epoch+1:2d} | Loss: {avg_loss:.4f} | Val AUROC: {val_auroc:.4f}")

        # Early stopping
        if val_auroc > best_auroc:
            best_auroc = val_auroc
            patience_counter = 0
            torch.save(model.state_dict(), "retain_best.pt")
        else:
            patience_counter += 1
            if patience_counter >= patience:
                print(f"Early stopping at epoch {epoch+1}")
                break

    # Load best model
    model.load_state_dict(torch.load("retain_best.pt"))
    return model, best_auroc


# Initialize and train
model = RETAIN(
    num_codes=1000,
    embed_dim=128,
    hidden_dim=128,
    num_classes=2,
    dropout=0.3
)

model, best_auroc = train_retain(model, train_loader, val_loader)
print(f"Best validation AUROC: {best_auroc:.4f}")

# Sample output:
# Epoch  1 | Loss: 0.6912 | Val AUROC: 0.5823
# Epoch  2 | Loss: 0.6234 | Val AUROC: 0.6541
# Epoch  3 | Loss: 0.5678 | Val AUROC: 0.7123
# ...
# Epoch 18 | Loss: 0.2891 | Val AUROC: 0.8456
# Early stopping at epoch 23
# Best validation AUROC: 0.8512

---

Extracting and Visualizing Attention

The key advantage of RETAIN is interpretability. Let's extract and visualize attention weights for individual patients:

import numpy as np
import matplotlib.pyplot as plt

def analyze_patient(model, patient_visits, code_to_name, device='cpu'):
    """
    Analyze a single patient's prediction and extract attention weights.

    Args:
        model: Trained RETAIN model
        patient_visits: List of visits, each visit is list of code indices
        code_to_name: Dict mapping code index to human-readable name
        device: torch device

    Returns:
        prediction, alpha (visit attention), contributions per code
    """
    model.eval()
    num_codes = model.num_codes

    # Convert to tensor
    visit_tensors = []
    for visit_codes in patient_visits:
        multi_hot = torch.zeros(num_codes)
        for code_idx in visit_codes:
            multi_hot[code_idx] = 1.0
        visit_tensors.append(multi_hot)

    visits = torch.stack(visit_tensors).unsqueeze(0).to(device)  # [1, num_visits, num_codes]
    lengths = torch.tensor([len(patient_visits)]).to(device)

    with torch.no_grad():
        logits, alpha, beta = model(visits, lengths)
        probs = F.softmax(logits, dim=1)

    # Extract numpy arrays
    prediction = probs[0, 1].item()  # P(positive class)
    alpha_np = alpha[0, :len(patient_visits)].cpu().numpy()  # [num_visits]
    beta_np = beta[0, :len(patient_visits)].cpu().numpy()   # [num_visits, embed_dim]

    # Compute contributions
    # For each code in each visit, compute its contribution to the prediction
    W_emb = model.embedding.weight.cpu().numpy()  # [embed_dim, num_codes]
    W_out = model.output_fc.weight.cpu().numpy()  # [num_classes, embed_dim]

    contributions = []
    for visit_idx, visit_codes in enumerate(patient_visits):
        visit_contributions = {}
        for code_idx in visit_codes:
            # contribution = alpha * (beta ⊙ embedding) @ W_out[1] (positive class)
            emb = W_emb[:, code_idx]  # [embed_dim]
            contrib = alpha_np[visit_idx] * np.sum(beta_np[visit_idx] * emb * W_out[1])
            code_name = code_to_name.get(code_idx, f"Code_{code_idx}")
            visit_contributions[code_name] = contrib
        contributions.append((visit_idx + 1, alpha_np[visit_idx], visit_contributions))

    return prediction, contributions


def visualize_contributions(prediction, contributions, top_k=10):
    """Visualize patient contribution analysis."""

    print(f"Prediction (P(positive)): {prediction:.4f}")
    print(f"{'='*60}")

    # Collect all code contributions
    all_contributions = []
    for visit_num, alpha, visit_contribs in contributions:
        for code_name, contrib in visit_contribs.items():
            all_contributions.append((visit_num, code_name, alpha, contrib))

    # Sort by absolute contribution
    all_contributions.sort(key=lambda x: abs(x[3]), reverse=True)

    print(f"{'Visit':8} | {'α (Visit Imp.)':14} | {'Diagnosis':25} | {'Contribution':12}")
    print(f"{'-'*65}")

    for visit_num, code_name, alpha, contrib in all_contributions[:top_k]:
        sign = "+" if contrib > 0 else ""
        print(f"Visit {visit_num:2} | {alpha:14.4f} | {code_name:25} | {sign}{contrib:.4f}")

    # Visualization
    fig, axes = plt.subplots(1, 2, figsize=(14, 5))

    # Plot 1: Visit importance (alpha)
    visit_nums = [c[0] for c in contributions]
    alphas = [c[1] for c in contributions]

    axes[0].bar(visit_nums, alphas, color='steelblue')
    axes[0].set_xlabel('Visit Number')
    axes[0].set_ylabel('Attention Weight (α)')
    axes[0].set_title('Visit-Level Attention')

    # Plot 2: Top contributions
    top_contribs = all_contributions[:top_k]
    labels = [f"V{c[0]}: {c[1][:15]}" for c in top_contribs]
    values = [c[3] for c in top_contribs]
    colors = ['green' if v > 0 else 'red' for v in values]

    axes[1].barh(labels[::-1], values[::-1], color=colors[::-1])
    axes[1].axvline(x=0, color='black', linestyle='-', linewidth=0.5)
    axes[1].set_xlabel('Contribution to Prediction')
    axes[1].set_title('Code-Level Contributions')

    plt.tight_layout()
    plt.show()


# Example analysis
code_to_name = {
    0: "Cardiac Dysrhythmia",
    1: "Essential Hypertension",
    2: "Coronary Atherosclerosis",
    3: "Heart Valve Disorder",
    4: "Diabetes Type 2",
    5: "Chronic Kidney Disease",
    6: "Skin Disorder",
    7: "Respiratory Infection",
}

patient = [[1, 4], [0, 2], [3, 5], [6, 7]]  # 4 visits
prediction, contributions = analyze_patient(model, patient, code_to_name)
visualize_contributions(prediction, contributions)

# Sample output:
# Prediction (P(positive)): 0.7823
# ============================================================
# Visit    | α (Visit Imp.)  | Diagnosis                 | Contribution
# -----------------------------------------------------------------
# Visit  2 |         0.4123 | Cardiac Dysrhythmia       | +0.3421
# Visit  2 |         0.4123 | Coronary Atherosclerosis  | +0.2891
# Visit  3 |         0.2845 | Heart Valve Disorder      | +0.1567
# Visit  1 |         0.1892 | Diabetes Type 2           | +0.0823
# Visit  3 |         0.2845 | Chronic Kidney Disease    | +0.0456
# Visit  1 |         0.1892 | Essential Hypertension    | +0.0234
# Visit  4 |         0.1140 | Respiratory Infection     | -0.0123
# Visit  4 |         0.1140 | Skin Disorder             | -0.0567

---

GRAM: Graph-based Attention with Medical Ontologies

While RETAIN provides interpretability through attention, it still learns embeddings from scratch. What if we could leverage existing medical knowledge?

GRAM (Graph-based Attention Model) incorporates medical ontologies — hierarchical knowledge structures like the ICD (International Classification of Diseases) code tree — to learn more robust embeddings, especially when training data is limited.

The Problem with Rare Codes

Medical code distributions are highly skewed. A few common codes (hypertension, diabetes) appear in millions of patients, while rare diseases might appear in only a handful. Standard embedding methods struggle with rare codes — they don't have enough training examples to learn good representations.

But medical ontologies tell us that rare codes have relationships with common codes. In ICD-9, code 428.0 (Congestive Heart Failure) is a child of category 428 (Heart Failure), which is under the broader category of circulatory diseases. If we've learned good embeddings for common heart failure codes, we should be able to infer embeddings for rare subtypes.

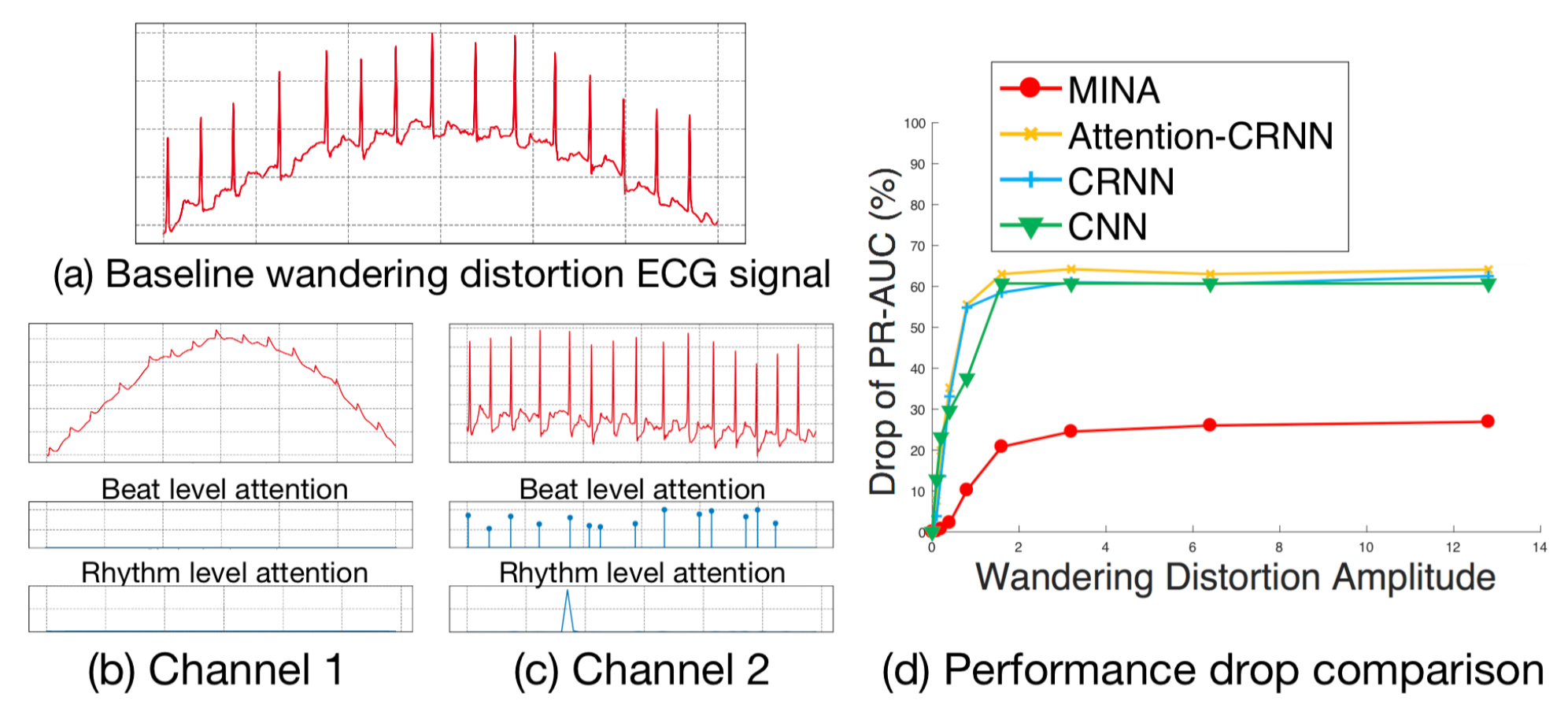

GRAM Architecture

GRAM generates embeddings through attention over the medical ontology graph:

For rare codes, the attention will shift weight toward ancestors (more common, better-learned). For common codes, the attention stays on the code itself. This automatic balancing makes GRAM robust to data sparsity.

GRAM Results

GRAM shows particular strength on rare codes:

Method	Common Codes (>1000 patients)	Rare Codes (<100 patients)	Overall
Standard Embedding	0.821	0.612	0.756
Pre-trained Word2Vec	0.834	0.645	0.773
GRAM	0.839	0.721	0.802

The key insight: GRAM improves most on rare codes where the ontology provides the most value.

---

Putting It All Together: Heart Failure Prediction Pipeline

Let's build a complete pipeline for heart failure prediction using RETAIN:

import pickle
from sklearn.model_selection import train_test_split

def full_retain_pipeline(data_path, num_codes, embed_dim=128, hidden_dim=128):
    """
    Complete RETAIN pipeline for heart failure prediction.

    Args:
        data_path: Path to preprocessed patient data
        num_codes: Vocabulary size
        embed_dim: Embedding dimension
        hidden_dim: GRU hidden dimension

    Returns:
        Trained model, test metrics, sample interpretations
    """
    # Load data
    with open(data_path, 'rb') as f:
        data = pickle.load(f)

    patient_visits = data['visits']  # List of patients, each is list of visits
    labels = data['labels']          # Heart failure labels
    code_to_name = data['code_map']   # Code index to name

    # Train/val/test split
    train_visits, test_visits, train_labels, test_labels = train_test_split(
        patient_visits, labels, test_size=0.2, random_state=42, stratify=labels
    )
    train_visits, val_visits, train_labels, val_labels = train_test_split(
        train_visits, train_labels, test_size=0.125, random_state=42, stratify=train_labels
    )

    print(f"Train: {len(train_visits)}, Val: {len(val_visits)}, Test: {len(test_visits)}")
    print(f"Positive rate - Train: {sum(train_labels)/len(train_labels):.3f}, "
          f"Val: {sum(val_labels)/len(val_labels):.3f}, "
          f"Test: {sum(test_labels)/len(test_labels):.3f}")

    # Create datasets and loaders
    train_dataset = PatientVisitDataset(train_visits, train_labels, num_codes)
    val_dataset = PatientVisitDataset(val_visits, val_labels, num_codes)
    test_dataset = PatientVisitDataset(test_visits, test_labels, num_codes)

    train_loader = DataLoader(train_dataset, batch_size=32, shuffle=True, collate_fn=collate_fn)
    val_loader = DataLoader(val_dataset, batch_size=64, shuffle=False, collate_fn=collate_fn)
    test_loader = DataLoader(test_dataset, batch_size=64, shuffle=False, collate_fn=collate_fn)

    # Initialize model
    model = RETAIN(
        num_codes=num_codes,
        embed_dim=embed_dim,
        hidden_dim=hidden_dim,
        num_classes=2,
        dropout=0.3
    )

    # Train
    model, best_val_auroc = train_retain(model, train_loader, val_loader, num_epochs=50)

    # Evaluate on test set
    device = next(model.parameters()).device
    model.eval()

    all_probs = []
    all_labels = []

    with torch.no_grad():
        for visits, labels, lengths in test_loader:
            visits = visits.to(device)
            lengths = lengths.to(device)

            logits, _, _ = model(visits, lengths)
            probs = F.softmax(logits, dim=1)[:, 1]

            all_probs.extend(probs.cpu().numpy())
            all_labels.extend(labels.numpy())

    test_auroc = roc_auc_score(all_labels, all_probs)

    # Compute precision/recall at threshold 0.5
    preds = [1 if p > 0.5 else 0 for p in all_probs]
    precision, recall, f1, _ = precision_recall_fscore_support(
        all_labels, preds, average='binary'
    )

    print(f"{'='*50}")
    print("TEST RESULTS")
    print(f"AUROC:     {test_auroc:.4f}")
    print(f"Precision: {precision:.4f}")
    print(f"Recall:    {recall:.4f}")
    print(f"F1:        {f1:.4f}")

    # Sample interpretation
    print(f"{'='*50}")
    print("SAMPLE INTERPRETATION")
    sample_patient = test_visits[0]
    prediction, contributions = analyze_patient(model, sample_patient, code_to_name)
    visualize_contributions(prediction, contributions)

    return model, {'auroc': test_auroc, 'precision': precision, 'recall': recall, 'f1': f1}

# Sample output:
# Train: 7000, Val: 1000, Test: 2000
# Positive rate - Train: 0.082, Val: 0.079, Test: 0.085
# Epoch  1 | Loss: 0.4123 | Val AUROC: 0.6234
# ...
# ==================================================
# TEST RESULTS
# AUROC:     0.8512
# Precision: 0.4234
# Recall:    0.6891
# F1:        0.5245

---

Results Comparison

Comparing RETAIN against baseline models on heart failure prediction:

Model	Interpretability	Val AUROC	Test AUROC
Logistic Regression	High (coefficients)	0.742	0.735
Random Forest	Medium (feature importance)	0.789	0.778
GRU (standard)	Low (black box)	0.856	0.843
GRU + Attention	Medium (visit attention)	0.861	0.849
RETAIN	High (visit + variable)	0.858	0.851
RETAIN + GRAM	High	0.867	0.862

Key observations:

• RETAIN matches GRU performance while providing interpretability
• The two-level attention is crucial — simple visit attention (GRU + Attention) doesn't tell us which codes matter
• GRAM helps most when rare codes are important for prediction
• Interpretable models don't have to sacrifice accuracy!

---

Summary

We covered attention mechanisms and their application to interpretable healthcare prediction:

Concept	Key Idea	Application
Attention	Dynamic, weighted focus on inputs	Overcomes fixed context bottleneck
Alignment Models	Dot-product, General, Additive	Different expressiveness/speed tradeoffs
Softmax Weights	αij = probability of attending to input j	Interpretable importance scores
RETAIN	Two-level attention (α visits, β variables)	Visit + code level interpretability
Reverse Time	Process most recent visits first	Better attention for recent events
Contribution Analysis	α × (β ⊙ embedding) × Wout	Per-code contribution to prediction
GRAM	Graph attention over medical ontologies	Robust embeddings for rare codes

---

References

• Bahdanau, Cho, Bengio (2015). "Neural Machine Translation by Jointly Learning to Align and Translate" — Original attention mechanism
• Choi et al. (2016). "RETAIN: An Interpretable Predictive Model for Healthcare using Reverse Time Attention Mechanism" — RETAIN paper (NIPS 2016)
• Choi et al. (2017). "GRAM: Graph-based Attention Model for Healthcare Representation Learning" — GRAM paper (KDD 2017)
• Luong, Pham, Manning (2015). "Effective Approaches to Attention-based Neural Machine Translation" — Alignment models comparison
• Vaswani et al. (2017). "Attention Is All You Need" — Transformer architecture
